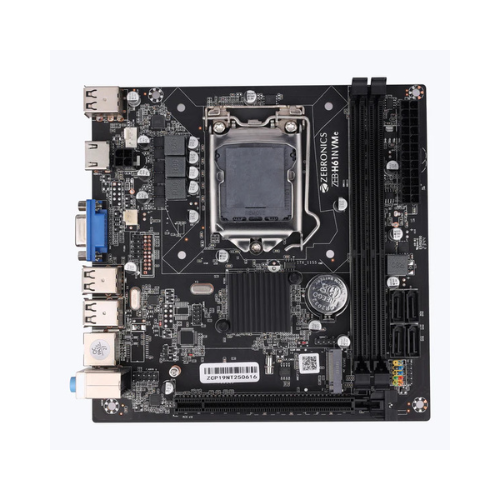

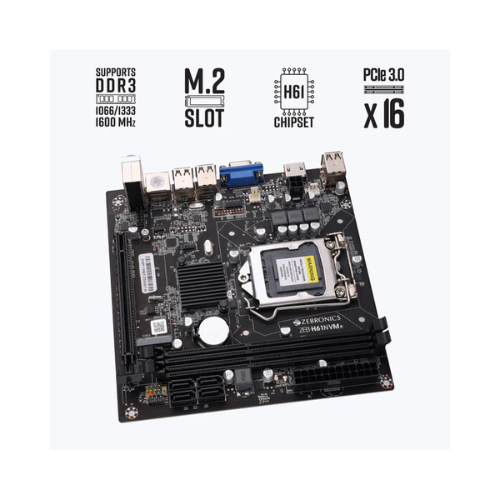

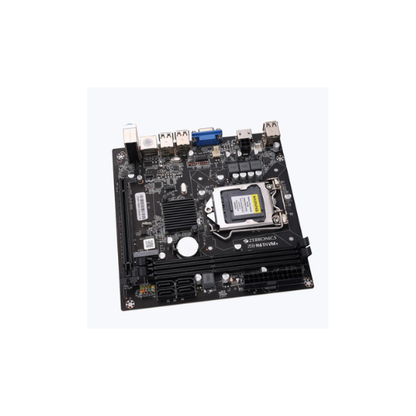

| Model |
Zebronics Zeb H61NVMe |
| Chipset |
Intel H61 / H67 |
| CPU Support |
Intel LGA 1155 – Core i7 / i5 / i3 / Pentium / Celeron series |
| Socket Type |
LGA 1155 |
| Memory Support |
2× DDR3 Slots, Dual Channel, 1066/1333/1600MHz, up to 16GB |
| Form Factor |
Micro-ATX |
| BIOS |
AMI BIOS |
| Storage Interface |
4 × SATA II Ports, 1 × M.2 Slot (NVMe SSD) |
| Expansion Slots |
1 × PCI Express 3.0 x16 (size slot) |
| Graphics Output |
1 × HDMI, 1 × VGA |
| USB Ports |
Rear I/O: 6 × USB 2.0 Ports |
| Audio Ports |
3-in-1 Audio (Line-out, Line-in, Mic) |
| LAN |
Realtek 8106E, 10/100 Mbps Ethernet |

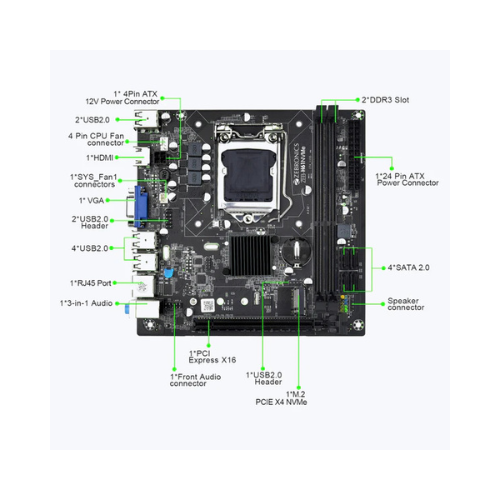

| Onboard Interfaces |
24-pin ATX Power, 4-pin 12V Power, Front Panel, Front Audio, USB 2.0 Header, Speaker, 2 Fan Headers, M.2 Slot, Debug Header |
| Integrated Sound |
Stereo Audio |
| Country of Origin |
People’s Republic of China |

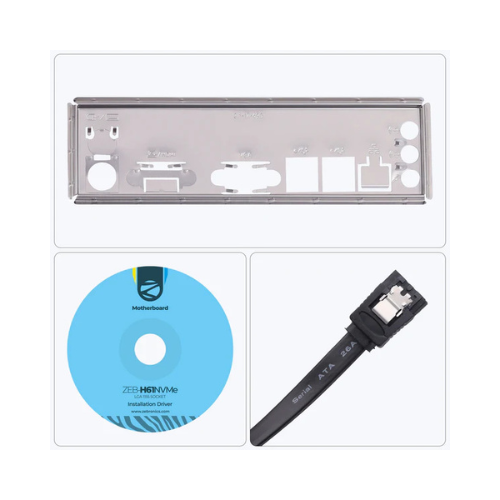

| Package Contents |
Motherboard, SATA Cable, I/O Shield, Driver Disc, User Manual |
