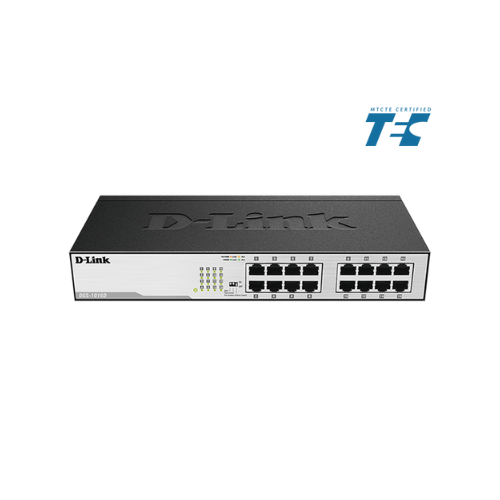

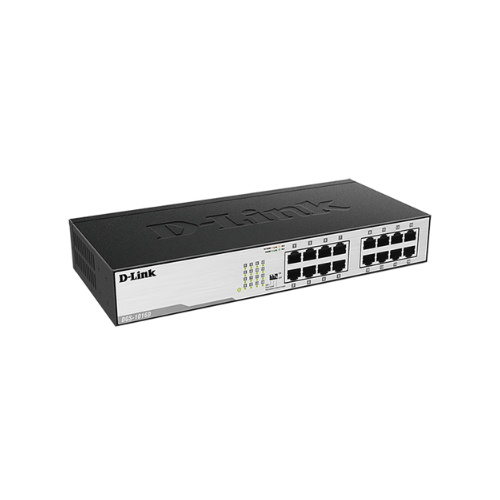

16-Port D-Link Unmanaged Gigabit Network Switch DGS-1016D | 10/100/1000 Mbps Gigabit Ethernet Ports | High-Speed, Fanless, Energy-Efficient, Rack-Mountable Design
16-Port D-Link Unmanaged Gigabit Network Switch DGS-1016D | 10/100/1000 Mbps Gigabit Ethernet Ports | High-Speed, Fanless, Energy-Efficient, Rack-Mountable Design
Regular price
Rs. 6,199.00
Regular price
Sale price
Rs. 6,199.00
Shipping calculated at checkout.
| Specification | Details |
|---|---|
| Brand | D-Link |
| Model | DGS-1016D |
| Type | 16-Port Gigabit Unmanaged Desktop Switch |
| Ports | 16 x 10/100/1000 Mbps Gigabit Ethernet Ports |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 23.81 Mpps |
| MAC Address Table Size | 8K |
| Packet Buffer Memory | 512 KB |
| Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet |
| QoS (Quality of Service) | 802.1p Priority with 8 Queues |
| Green Features | Power saving by link status and cable length (EEE) |
| Security Features | Storm Control, Port Isolation |
| Cable Diagnostics | Supported (via port LEDs) |
| Data Transfer Rates | Ethernet: 10/20 Mbps, Fast Ethernet: 100/200 Mbps, Gigabit Ethernet: 2000 Mbps |
| Transmission Method | Store-and-Forward |
| Network Cables Supported | Ethernet: Cat 3/4/5/5e (UTP), Fast Ethernet: Cat 5/5e (UTP), Gigabit Ethernet: Cat 5/5e (UTP), up to 100m |
| Auto MDI/MDIX | Supported on all ports |
| Power Supply | Internal Universal Power Supply (100–240V AC, 50–60Hz) |
| Power Consumption | Max: 9.26W, Standby: 2.98W |
| Heat Dissipation | 31.6 BTU/h |
| Noise Level | 0 dB (Fanless Design) |
| Dimensions (W x D x H) | 280 x 126 x 44 mm |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -10°C – 70°C |
| Humidity | Operating: 10–90% RH (Non-condensing); Storage: 5–90% RH |
| Certifications | CE Class A, FCC Class A, ICES-003, RCM, BSMI, VCCI, UL, LVD, CB |
| Features | Fanless silent operation, Metal housing, Rack-mountable design, Plug-and-play installation, Energy-efficient operation |
| Warranty | As per D-Link manufacturer policy |
